Temperature Controlled fan

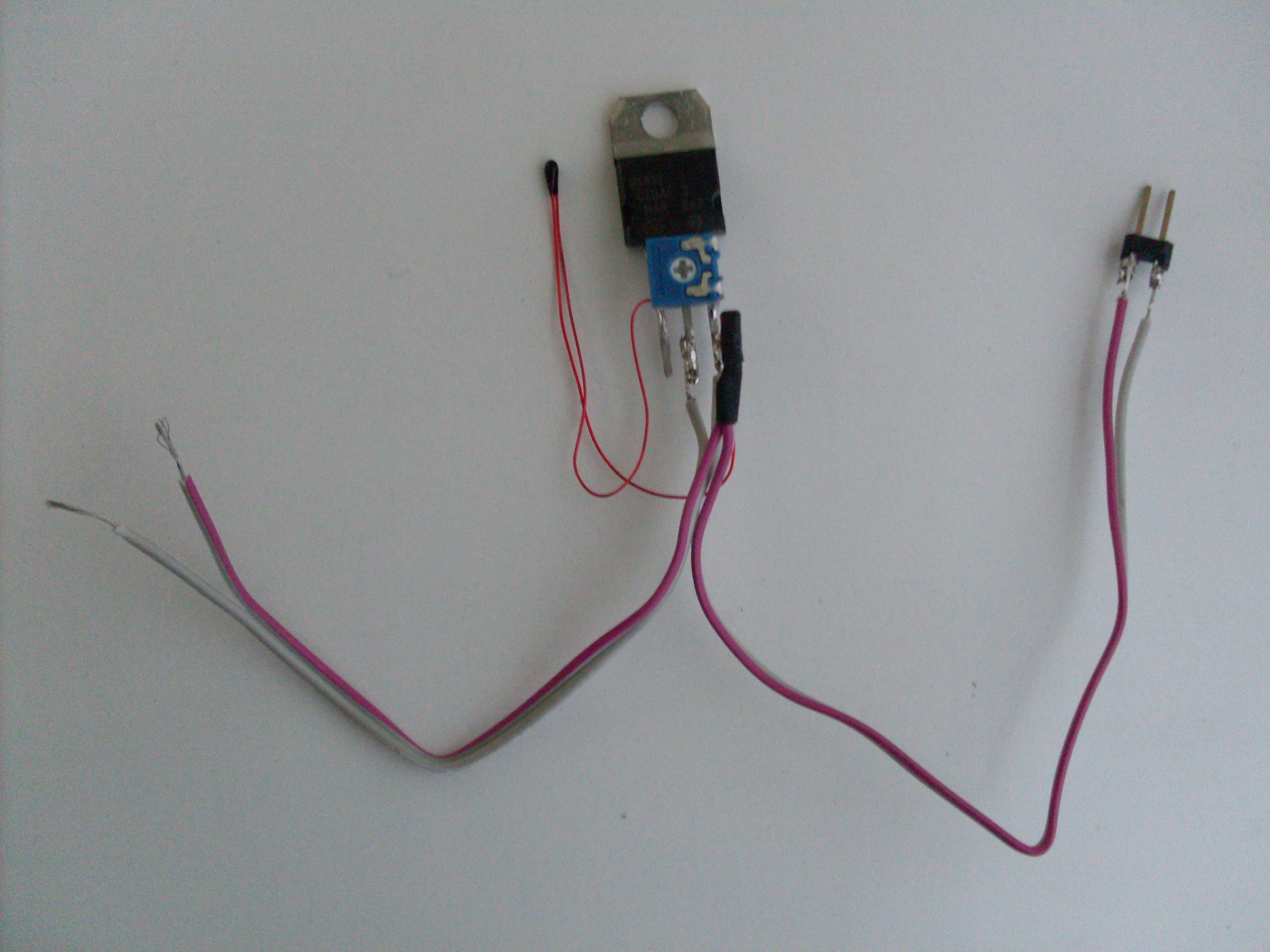

This is simple schematic of a temperature control for a fan cooling system. The sensor is a 10k NTC which can be mount on the  radiator or the device which temperature control the speed of the fan. For regulating element we use N-mosfet with parameters matching the parameters of the controlled DC fan. To set the switching ON temperature of the fan we use 10 k trimming potentiometer.
